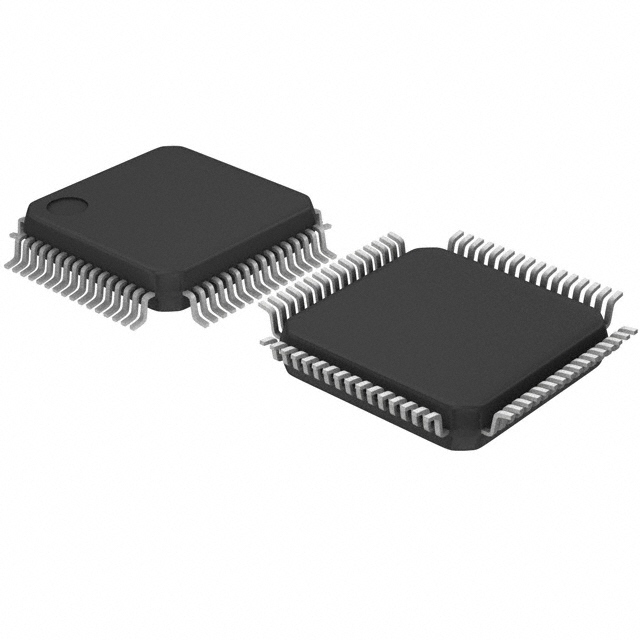

MB9BF524LPMC-G-JNE2

SKU: 84058

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M3 RISC 288KB Flash 3.3V/5V 64-Pin LQFP Tray

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.3
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	FM3
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	72
Maximum Clock Rate (MHz)	72
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	288KB
RAM Size	32KB
Programmability	Yes
Interface Type	CAN/I2C/UART/USB
Number of I/Os	50
No. of Timers	3
PWM	1
Number of ADCs	Dual
ADC Channels	23/23
ADC Resolution (bit)	12/12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	10
USART	0
UART	1
USB	1
SPI	0
I2C	1
I2S	0
CAN	1
Ethernet	0
Watchdog	2
Parallel Master Port	No
Real Time Clock	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	300
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	64
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	10
Package Width	10
PCB changed	64
