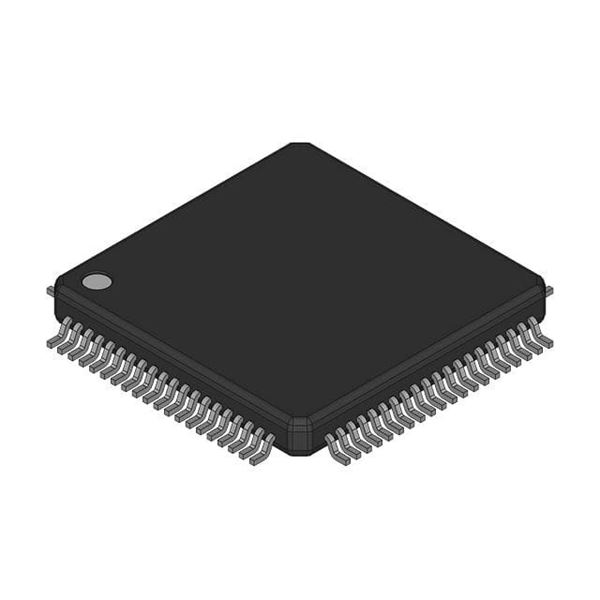

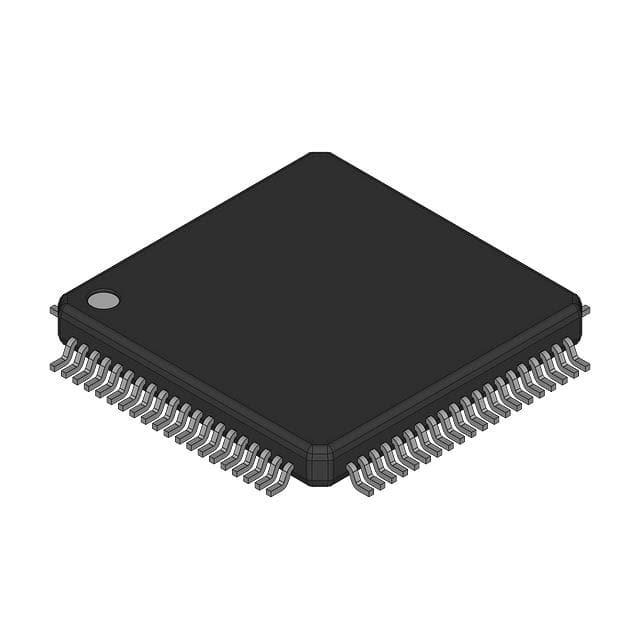

MB9BF168MPMC-G-JNE2

SKU: 126480

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M4F RISC 1MB Flash 3.3V/5V 80-Pin LQFP Tray

2690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	FM4
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4F
Core Architecture	ARM
Maximum CPU Frequency (MHz)	160
Maximum Clock Rate (MHz)	160
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	128KB
Programmability	Yes
Interface Type	I2C/UART
Number of I/Os	63
No. of Timers	4
Number of ADCs	Triple
ADC Channels	16/16/16
ADC Resolution (bit)	12/12/12
Number of DACs	Dual
DAC Channels	2
DAC Resolution (bit)	12/12
USART	0
UART	8
USB	0
SPI	0
I2C	8
I2S	0
CAN	0
Ethernet	0
Watchdog	2
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	LQFP
Pin Count	80
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	12
Package Width	12
