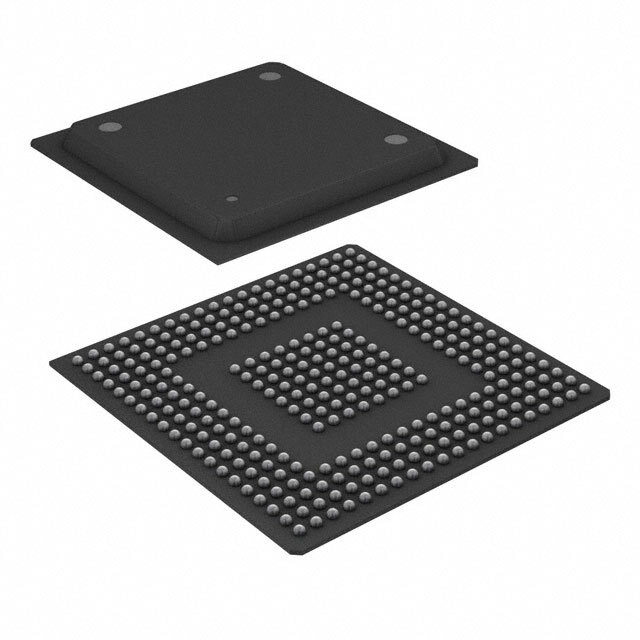

MB91F59BCPB-GSE1

SKU: 101361

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit FR81S RISC 2112KB Flash 3.3V/5V Automotive 320-Pin BGA Tray

3410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Unknown
PPAP	Unknown
Family Name	MB91590
Instruction Set Architecture	RISC
Device Core	FR81S
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2112KB
RAM Size	192KB
Programmability	Yes
Interface Type	CAN/USART
No. of Timers	4
PWM	1
Number of ADCs	Single
ADC Channels	32
ADC Resolution (bit)	10
USART	8
UART	0
USB	0
SPI	0
I2C	0
I2S	0
CAN	3
Ethernet	0
Watchdog	1
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	BGA
Pin Count	320
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.46(Max) - 0.35(Min)
Package Length	27
Package Width	27
PCB changed	320
