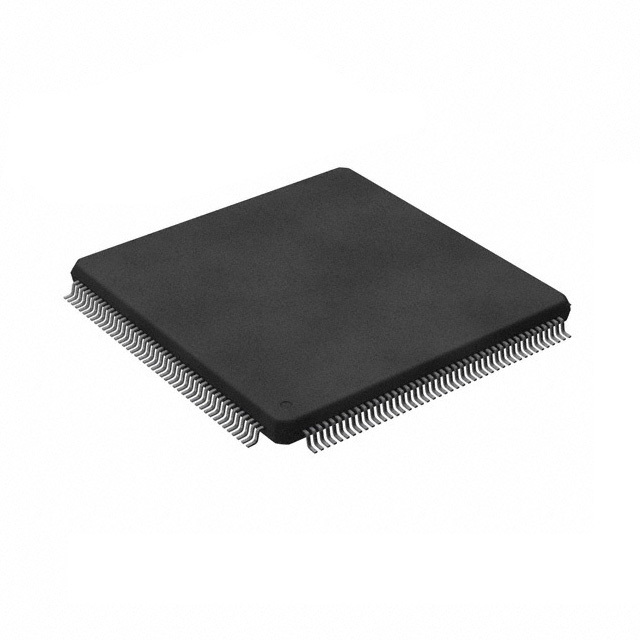

MB91F467SAPMC-GSE2

SKU: 119447

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit FR60 RISC 1088KB Flash 3.3V/5V Automotive 176-Pin LQFP Tray

3400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.31.00.01
Automotive	Unknown
PPAP	Unknown
Family Name	FR60
Instruction Set Architecture	RISC
Device Core	FR60
Maximum CPU Frequency (MHz)	100
Maximum Clock Rate (MHz)	100
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1088KB
RAM Size	64KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	CAN/I2C/USART
Number of I/Os	133
No. of Timers	4
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	10
USART	6
UART	0
USB	0
SPI	0
I2C	3
I2S	0
CAN	2
Ethernet	0
Watchdog	1
Analog Comparators	1
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	176
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	24
Package Width	24
PCB changed	176
