MB91F467MAPMC-GSE1

SKU: 112364

Manufacturer: Cypress - An Infineon Technologies Company

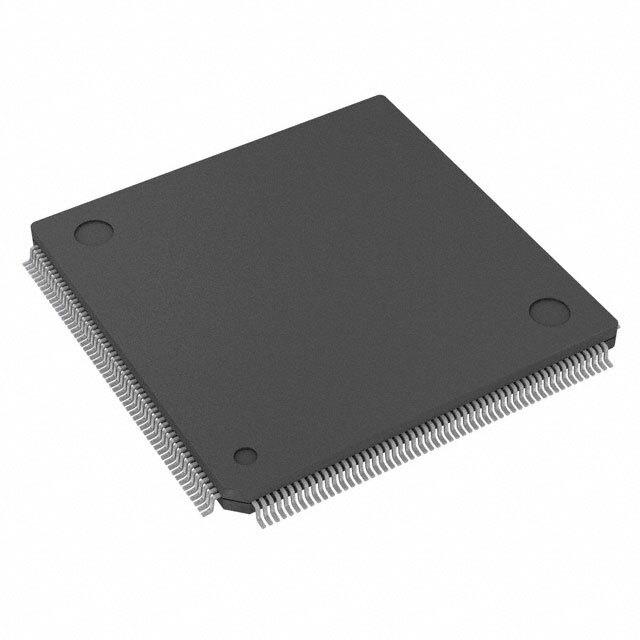

MCU 32-bit FR60 RISC 1MB Flash 3.3V/5V 216-Pin LQFP Tray

3940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Unknown
Family Name	FR60
Instruction Set Architecture	RISC
Device Core	FR60
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	64KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	I2C/I2S/USART
No. of Timers	3
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	10
USART	9
UART	0
USB	0
SPI	0
I2C	8
I2S	10
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	216
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	24
Package Width	24
PCB changed	216
