CYW20706UA1KFFB1G

SKU: 79705

Manufacturer: Cypress - An Infineon Technologies Company

Bluetooth v4.2 (BLE) + EDR SMART SOC Class I/Class II IoT 3.3V 49-Pin FCBGA Tray

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Unconfirmed
HTS	8542.31.00.01
Automotive	No
PPAP	No
Type	Module
Protocols Supported	Bluetooth v4.2 (BLE) + EDR
Processing Unit Type	Microprocessor
Power Class	Class I/Class II
Minimum Operating Frequency (MHz)	2402
Maximum Operating Frequency (MHz)	2480
Solutions	ISM
ISM Band	2.4GHz
Typical Sensitivity (dBm)	-95.5
Interface Type	GPIO/I2C/PCM/SPI/UART/USB
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Supply Current (A)	0.5
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tray
Special Features	IoT

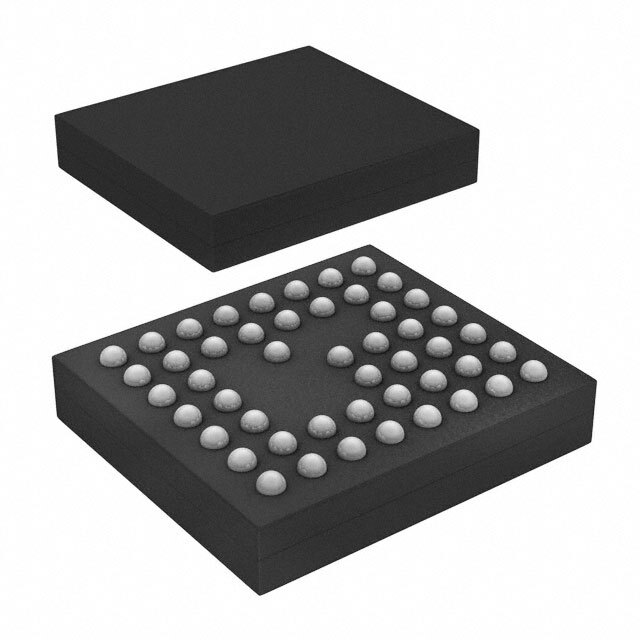

Original Package	FCBGA
Pin Count	49
Terminal Form	Surface Mount
Package Height	0.81(Max)
Package Length	4.5
Package Width	4
