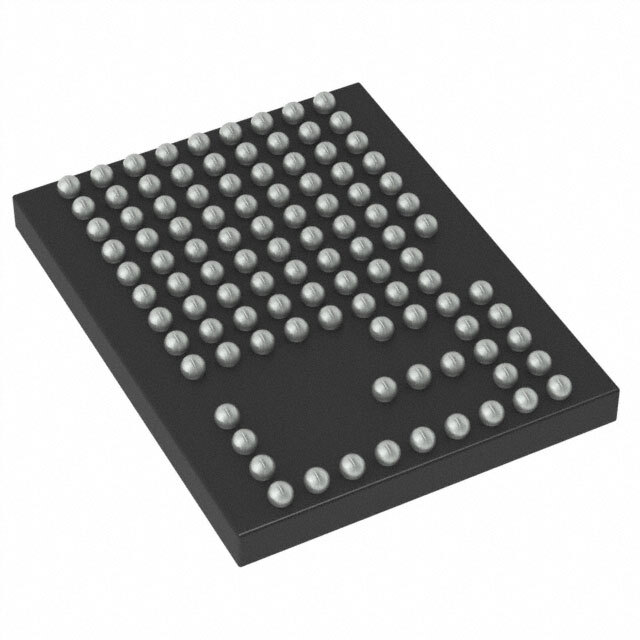

CY8C6347FMI-BLD53T

SKU: 32605

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M4/M0+ RISC 1MB Flash 3.3V 104-Pin WLCSP T/R

2120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4/M0+
Core Architecture	ARM
Maximum CPU Frequency (MHz)	150/100
Maximum Clock Rate (MHz)	150/100
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	288KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	70
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	12
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	104
Terminal Form	Surface Mount
Package Height	0.42
Package Length	5
Package Width	3.84
