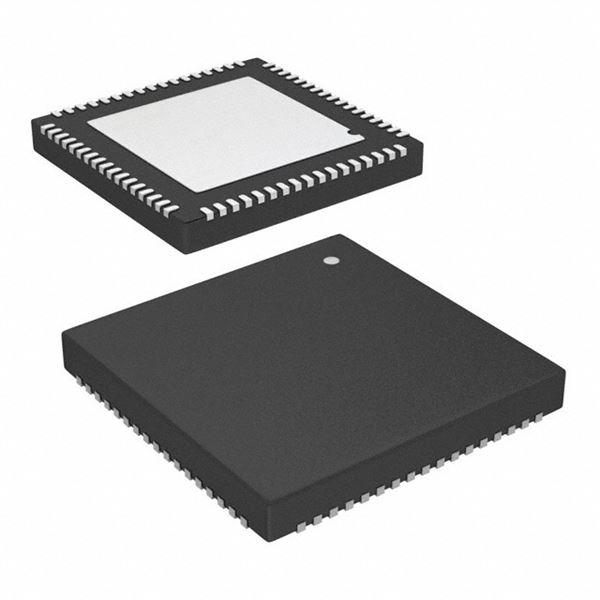

CY8C3446LTI-085T

SKU: 58666

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit 8051 RISC 64KB Flash 2.5V/3.3V/5V 68-Pin QFN EP T/R

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.3
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Instruction Set Architecture	RISC
Device Core	8051
Core Architecture	8051
Maximum CPU Frequency (MHz)	50
Maximum Clock Rate (MHz)	50
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	8KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SPI/UART/USB
Number of I/Os	48
No. of Timers	4
PWM	1
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	12
Number of DACs	Dual
DAC Channels	2
DAC Resolution (bit)	8/8
LCD Segments	736
USART	0
UART	1
USB	2
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	4
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	68
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	8
Package Width	8
PCB changed	68
