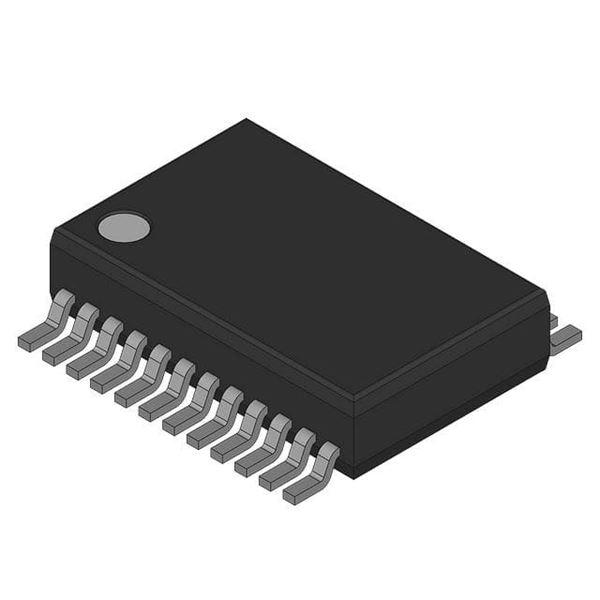

CY7C60223-QXC

SKU: 11280

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit M8C RISC 8KB Flash 3.3V 24-Pin QSOP Tube

3150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	enCoRe II
Instruction Set Architecture	RISC
Device Core	M8C
Core Architecture	M8C
Maximum CPU Frequency (MHz)	12
Maximum Clock Rate (MHz)	12
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	256B
Programmability	Yes
Interface Type	SPI
Number of I/Os	20
No. of Timers	3
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	300
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	24
Standard Package Method	SOP
Original Package	QSOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.74(Max)
Package Width	3.99(Max)
PCB changed	24
