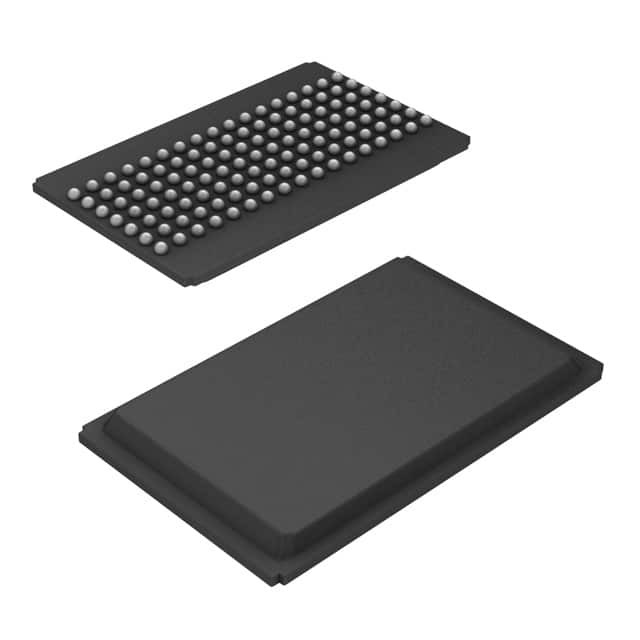

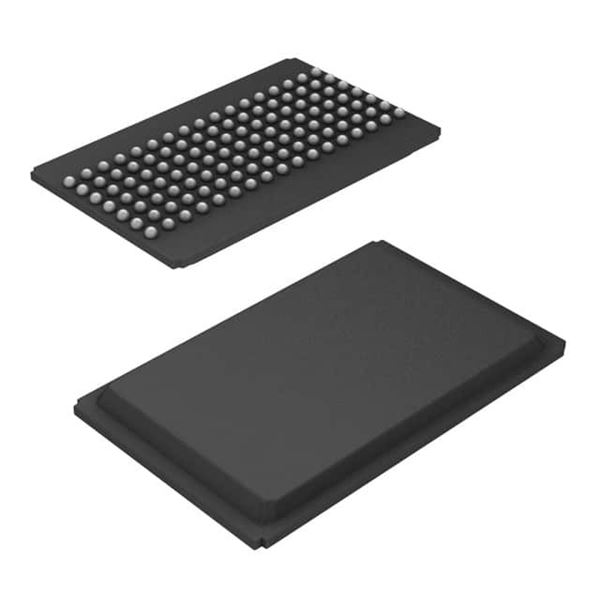

CY7C1012AV33-8BGC

SKU: 96134

Manufacturer: Cypress - An Infineon Technologies Company

SRAM Chip Async Single 3.3V 12M-bit 512K x 24-bit 8ns 119-Pin BGA Tray

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991b.2.a.
Part Status	Obsolete
HTS	8542.32.00.41
Automotive	No
PPAP	No
Chip Density (bit)	12M
Number of Words	512K
Number of Bits/Word (bit)	24
Data Rate Architecture	SDR
Address Bus Width (bit)	19
Number of Ports	1
Timing Type	Asynchronous
Max. Access Time (ns)	8
Process Technology	90nm, CMOS
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	300
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Original Package	BGA
Pin Count	119
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.46
Package Length	22
Package Width	14
PCB changed	119
