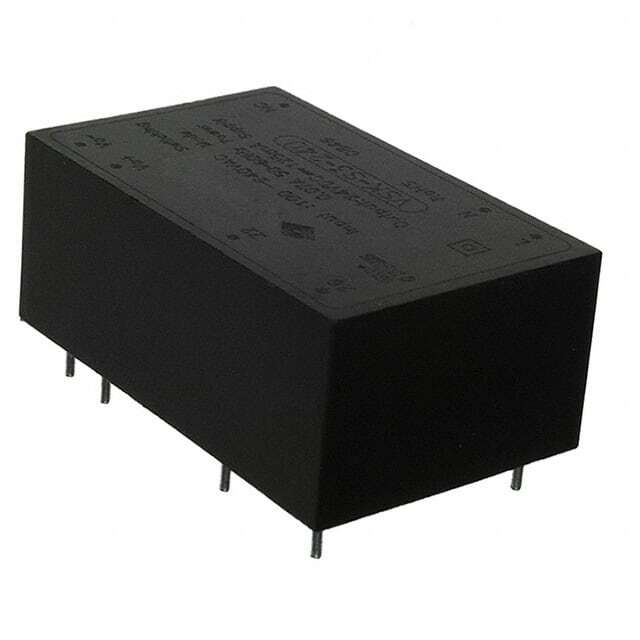

VSK-S3-5U CUI Inc

VSK-S3-5U

SKU: 128653

Manufacturer: CUI Inc

AC/DC Power Supply Single-OUT 5V 0.6A 3W 7-Pin

Request Free Samples

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.60.18
Automotive	No
PPAP	No
Type	Switching
Style	Encapsulated
Power Supply Color	Black
Input/Output Type	AC/DC
Number of Outputs	1
Output Type	Fixed
Output Voltage (V)	5
Output Current (A)	0.6
Output Power (W)	3
Minimum AC Input Voltage (V)	85
Typical AC Input Voltage (V)	230
Maximum AC Input Voltage (V)	264
Minimum DC Input Voltage (V)	110
Maximum DC Input Voltage (V)	370
Minimum Isolation Voltage	3000VAC
Line Regulation	0.5%(Typ)
Load Regulation	1%(Typ)
Maximum Input Current (A)	0.065(Typ)
Input Frequency (Hz)	47 to 440
Tolerance (%)	±2
Efficiency (%)	72(Typ)
Input Connector Type	PC Pins
Output Connector Type	PC Pins
Power Indicator	No
Ripple & Noise	30mV
Medical	No
Operating Temperature-Min	-25
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Pin Count	7
Terminal Form	Through Hole
Package Height	15
Package Length	37
Package Width	23
