    PrevVSK-S1-12U
    NextVSK-S3-5U

    VSK-S2-5U

    SKU: 135786
    Manufacturer: CUI Inc

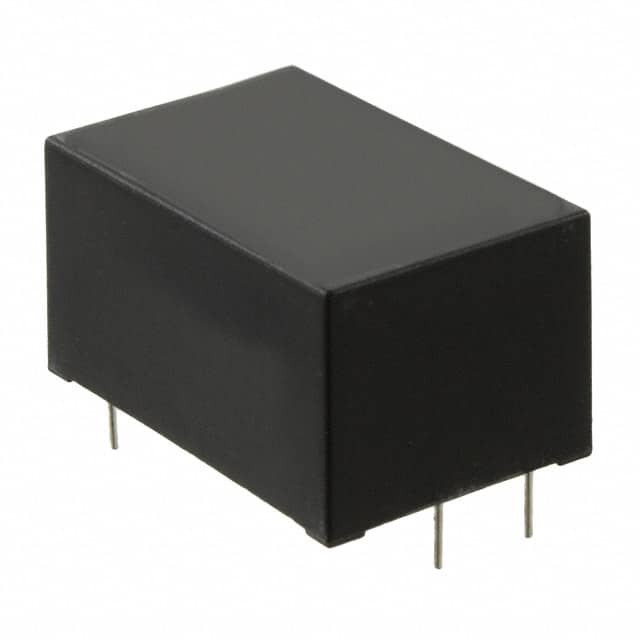

    AC/DC Power Supply Single-OUT 5V 0.4A 2W 4-Pin DIP
    Request Free Samples
    3120 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Type Switching
    Style Enclosed
    Power Supply Color Black
    Input/Output Type AC/DC
    Number of Outputs 1
    Output Type Fixed
    Output Voltage (V) 5
    Output Current (A) 0.4
    Output Power (W) 2
    Minimum AC Input Voltage (V) 85
    Typical AC Input Voltage (V) 110
    Maximum AC Input Voltage (V) 305
    Minimum DC Input Voltage (V) 120
    Maximum DC Input Voltage (V) 430
    Minimum Isolation Voltage 3000VAC
    Line Regulation 2%
    Load Regulation 5%
    Maximum Input Current (A) 0.044(Typ)
    Input Frequency (Hz) 47 to 63
    Tolerance (%) ±5
    Efficiency (%) 70(Typ)
    Input Connector Type PC Pins
    Output Connector Type PC Pins
    Power Indicator No
    Ripple & Noise 200mV(Max)
    Medical No
    Operating Temperature-Min -25
    Operating Temperature-Max 70
    Supplier Temperature Grade Commercial
    Standard Package Method DIP
    Original Package DIP
    Pin Count 4
    Terminal Form Through Hole
    Package Height 18
    Package Length 33.7
    Package Width 22.2
    PCB changed 4
