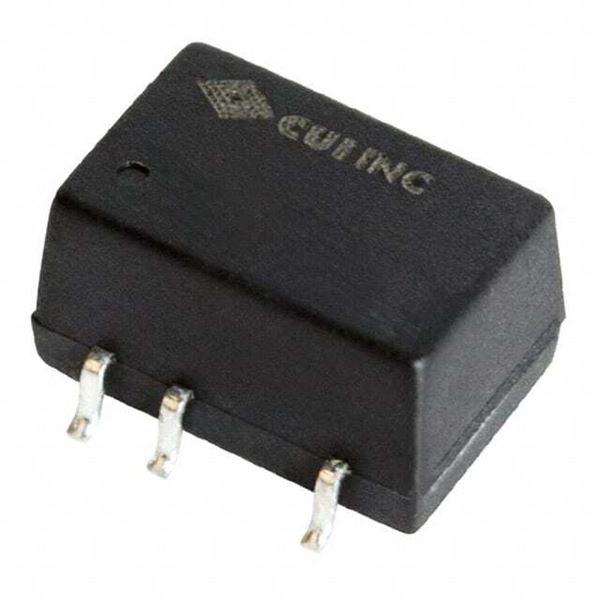

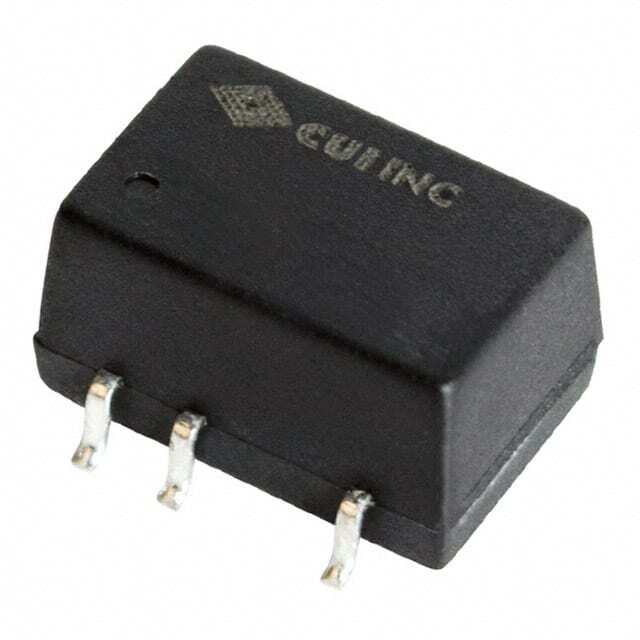

PDS1-S24-S24-M-TR CUI Inc

PDS1-S24-S24-M-TR

SKU: 66222

Manufacturer: CUI Inc

Module DC-DC 24VIN 1-OUT 24V 0.042A 1W 5-Pin SMD Module T/R

Request Free Samples

2410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.80
Automotive	No
PPAP	No
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	21.6
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	26.4
Output Voltage (V)	24
Output Current (A)	0.042
Output Power (W)	1
Minimum Isolation Voltage	1500VDC
Input/Output Type	DC/DC
Switching Frequency (kHz)	100(Typ)
Switching Regulator	Yes
Load Regulation	5%(Typ)
Line Regulation	1.2%
Efficiency (%)	80(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Product Weight (g)	1.6
Output Type	Fixed
Original Package	SMD Module
Pin Count	5
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	7
Package Length	12.7
Package Width	8.3
PCB changed	5
