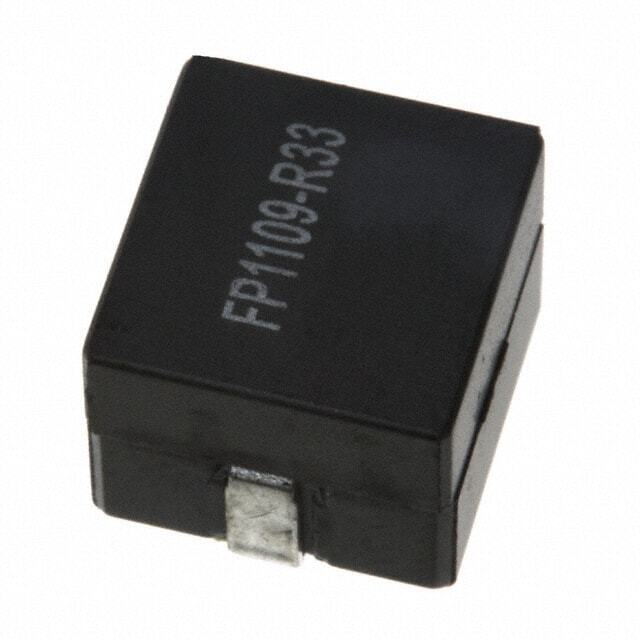

FP1109-R33-R

SKU: 40144

Manufacturer: Cooper Industries

Inductor Power Wirewound 0.311uH/0.185uH 20% 100KHz Ferrite 35A 0.00042Ohm DCR T/R

970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	0.311u(OCL)/0.185u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	35
Maximum Saturation Current (A)	44
Maximum DC Resistance (Ohm)	0.00042(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	11.2
Depth (mm)	11.2
