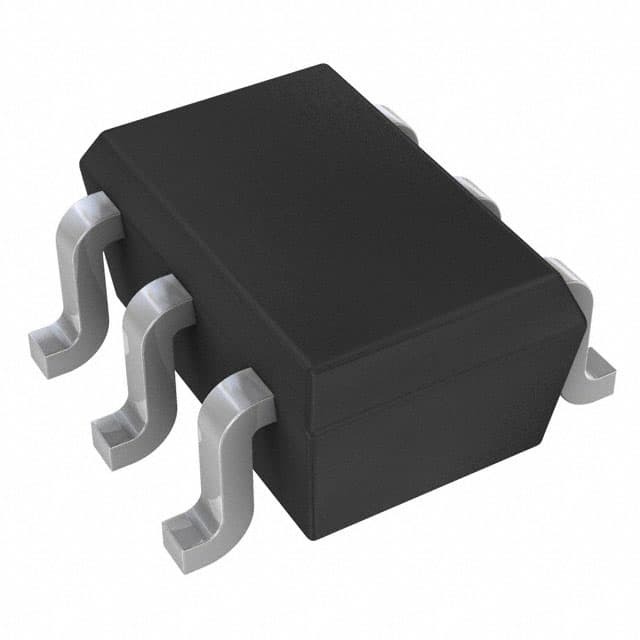

CG2179M2-C4

SKU: 124432

Manufacturer: California Eastern Laboratories

RF Switch SPDT 50MHz to 3GHz 21dB 6-Pin Mini-Mold T/R

76960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	50(Typ)
Frequency Band (MHz)	50 to 3000
Maximum Frequency (MHz)	3000
Minimum Isolation Voltage (dB)	21
Maximum Insertion Loss (dB)	0.65
Technology	pHEMT GaAs
High Control Voltage (V)	1.8 to 5.3
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	Mini-Mold
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
