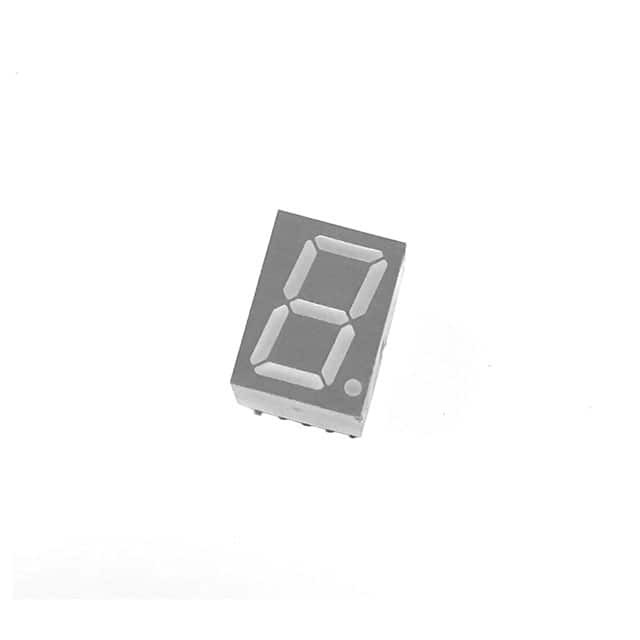

HDSP-5603

SKU: 33073

Manufacturer: Broadcom Inc

Display Segmented Module 1DIGIT 8LED Green CC 10-Pin DIP Module

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8531.20.00.20
Automotive	No
PPAP	No
Type	Module
Number of Digits	1
Color	Green
Number of LEDs	8
Digit Size (in)	0.56
Character Displayed	Numeric
Intensity (ucd)	3100
Dominant Wavelength (nm)	571
Peak Wavelength (nm)	566
Configuration	Common Cathode
Maximum Forward Current (mA)	30
Test Current (mA)	10
Maximum Reverse Voltage (V)	50(Typ)
Maximum Forward Voltage (V)	2.5
Maximum Power Dissipation (mW)	105
Typical Forward Voltage (V)	2.1
Internal Protection	No
Operating Temperature-Min	-40
Operating Temperature-Max	100
Original Package	DIP Module
Pin Count	10
Standard Package Method	DIM
Terminal Form	Through Hole
Package Height	8
Package Length	12.57(Max)
Package Width	17.02
PCB changed	10
