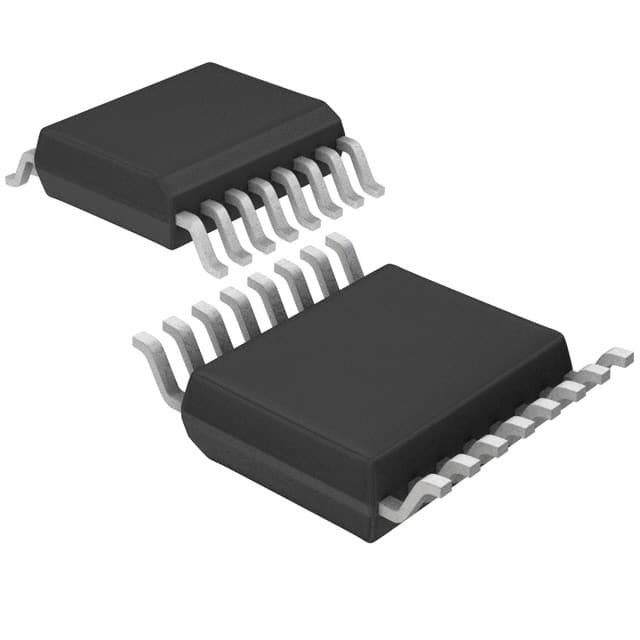

HCPL-314J

SKU: 132194

Manufacturer: Broadcom Inc

Optocoupler Drive Push-Pull 2-CH 30V 1500V 16-Pin SOIC

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Channels per Chip	2
Minimum Isolation Voltage (Vrms)	3750
Minimum Common Mode Rejection (kV/us)	25
Maximum Rise Time (ns)	50(Typ)
Maximum Fall Time (ns)	50(Typ)
Maximum Propagation Delay Time (tPLH) (ns)	700
Maximum Propagation Delay Time (tPHL) (ns)	700
Output Type	Push-Pull
Maximum Peak Output Current (A)	0.4
Minimum Forward Current (mA)	8
Maximum Forward Current (mA)	12
Minimum Forward Voltage (V)	1.2
Maximum Forward Voltage (V)	1.8
Maximum Reverse Voltage (V)	3
Common Mode Voltage (V)	1500
Operating Supply Voltage-Max (V)	30
Maximum Working Insulation Voltage (Vp)	891
Maximum Power Dissipation (mW)	260
Operating Temperature-Min	-40
Operating Temperature-Max	100
Standard Package Method	SOP
Original Package	SOIC
Pin Count	16
Terminal Form	Surface Mount
Package Height	3.51
Package Length	10.31
Package Width	7.49
PCB changed	16
