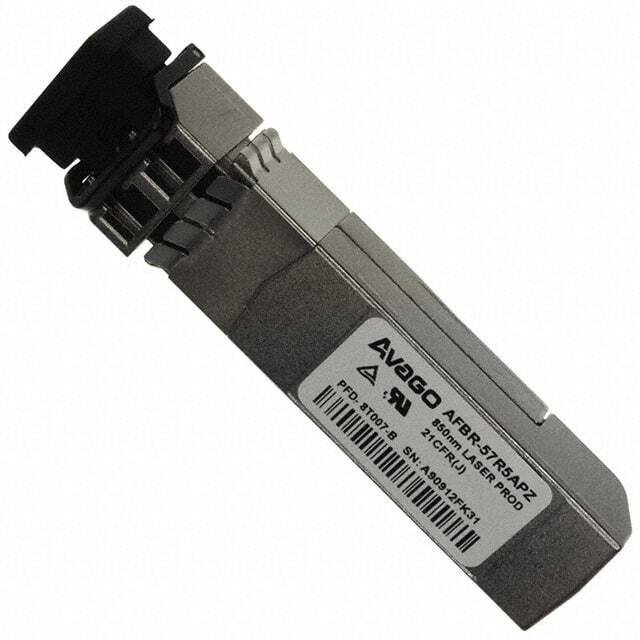

AFBR-57R5APZ

SKU: 109602

Manufacturer: Broadcom Inc

TX/RX Optical Fiber 4.25Gbps 20-Pin

300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	TX/RX
Fiber Mode	Multi Mode
Connector Type	LC
Maximum Data Rate	4.25Gbps
Peak Wavelength (nm)	850
Rise Time (ns)	0.09/0.15
Maximum Fall Time (ns)	0.09/0.15
Average Optical Output Power (dBm)	-9(Min)
Maximum Forward Current (mA)	210
Operating Supply Voltage-Min (V)	2.97
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.63
Maximum Power Dissipation (mW)	765
Operating Temperature-Min	-10
Operating Temperature-Max	85
Pin Count	20
Terminal Form	Snap Fit To Panel
Package Height	12.4
Package Length	57.21
Package Width	13.6
