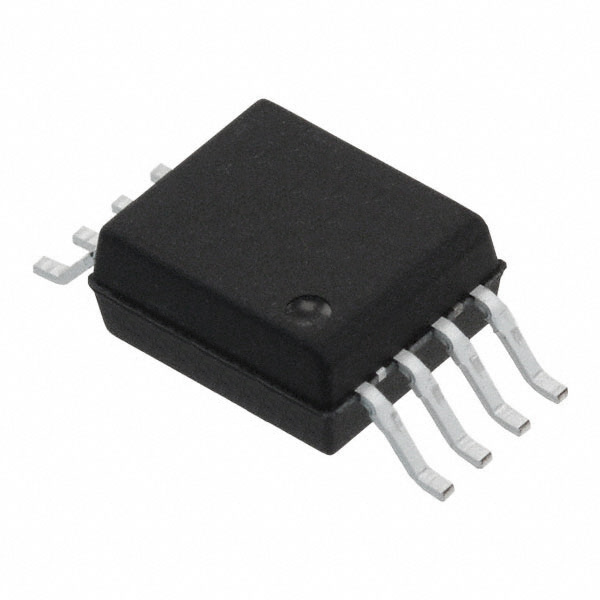

ACPL-K34T-560E

SKU: 10228

Manufacturer: Broadcom Inc

Optocoupler Drive 1-CH 20V 1500V Automotive 8-Pin SO Stretched T/R

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	Yes
PPAP	Unknown
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Minimum Common Mode Rejection (kV/us)	50
Maximum Rise Time (ns)	30
Maximum Fall Time (ns)	30
Maximum Propagation Delay Time (tPLH) (ns)	110
Maximum Propagation Delay Time (tPHL) (ns)	110
Maximum Pulse Width Distortion (ns)	40
Minimum Peak Output Current (A)	2
Maximum Forward Current (mA)	20
Minimum Forward Voltage (V)	1.25
Maximum Forward Voltage (V)	1.85
Maximum Reverse Voltage (V)	6
Common Mode Voltage (V)	1500
Operating Supply Voltage-Max (V)	20
Maximum Working Insulation Voltage (Vp)	1140
Maximum Power Dissipation (mW)	550
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SO Stretched
Pin Count	8
Terminal Form	Surface Mount
Package Height	3.18
Package Length	5.85
Package Width	6.81
PCB changed	8
