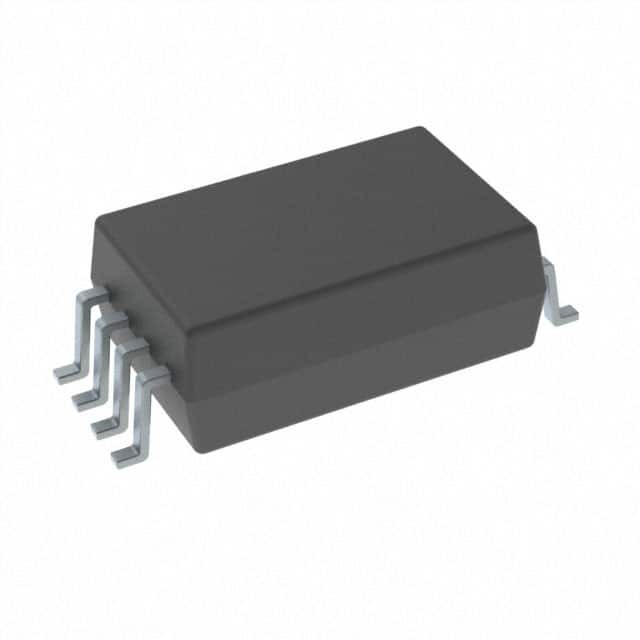

ACNU-3430-000E

SKU: 60052

Manufacturer: Broadcom Inc

Optocoupler Drive Push-Pull 1-CH 1500V 8-Pin SSOP Tube

3420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Minimum Common Mode Rejection (kV/us)	100
Maximum Rise Time (ns)	50
Maximum Fall Time (ns)	30
Maximum Propagation Delay Time (tPLH) (ns)	150
Maximum Propagation Delay Time (tPHL) (ns)	150
Maximum Pulse Width Distortion (ns)	80
Output Type	Push-Pull
Minimum Peak Output Current (A)	5
Maximum Peak Output Current (A)	5
Minimum Forward Current (mA)	7
Maximum Forward Current (mA)	12
Minimum Forward Voltage (V)	1.2
Maximum Forward Voltage (V)	1.85
Maximum Reverse Voltage (V)	5
Common Mode Voltage (V)	1500
Maximum Working Insulation Voltage (Vp)	1414
Maximum Power Dissipation (mW)	550
Operating Temperature-Min	-40
Operating Temperature-Max	110
Supplier Temperature Grade	Industrial
Packing Method	Tube
Standard Package Method	SOP
Original Package	SSOP
Pin Count	8
Terminal Form	Surface Mount
Package Height	3.61
Package Length	6.25
Package Width	9.6
