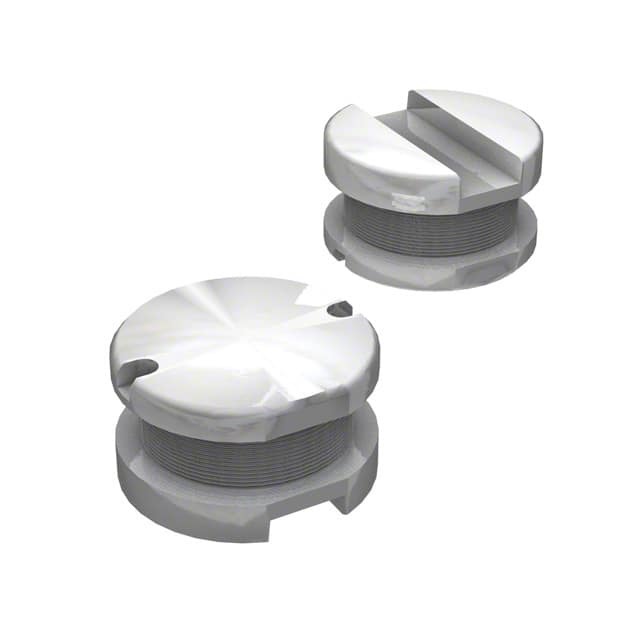

SDR0503-271KL

SKU: 99067

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 270uH 10% 1KHz 35Q-Factor Ferrite 0.23A 2.9Ohm DCR Automotive T/R

2170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	270u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.23
Maximum Saturation Current (A)	0.28(Typ)
Maximum DC Resistance (Ohm)	2.9
Minimum Quality Factor	35
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	6M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5.3
Terminal Form	Surface Mount
Depth (mm)	5.1
