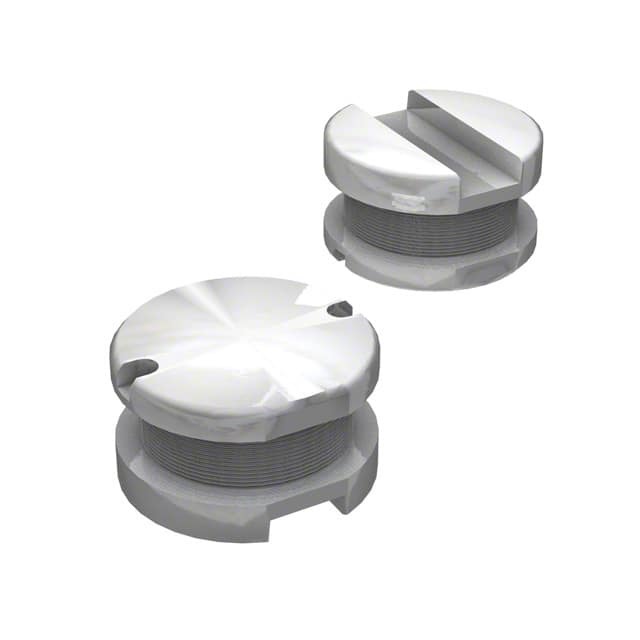

SDR0503-222JL

SKU: 141654

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 2200uH 5% 1KHz 40Q-Factor Ferrite 0.053A 22Ohm DCR Automotive T/R

3910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Unknown
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	2200u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	5%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.053
Maximum Saturation Current (A)	0.07(Typ)
Maximum DC Resistance (Ohm)	22
Minimum Quality Factor	40
Quality Test Frequency (Hz)	252K
Minimum Self Resonant Frequency (Hz)	2M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5.3
Terminal Form	Surface Mount
Depth (mm)	5.1
