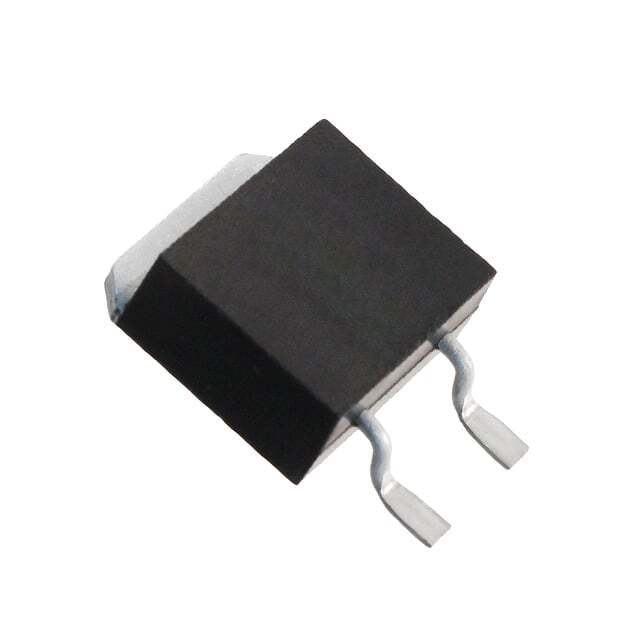

PWR263S-35-4R00F

SKU: 151229

Manufacturer: Bourns

Res Thick Film 4 Ohm 1% 35W ±100ppm/°C TO-263 Gull Wing SMD Automotive Tube

3330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.29.00.00
Automotive	Yes
PPAP	Yes
Resistance Value (Ohm)	4
Tolerance	1%
Voltage Rating-Max (V)	250
Current Sensing	No
Power Rating (W)	35
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±100
Temperature Range @ Derated Power (°C)	25 to 155
Special Features	High Power
Fail Safe Fusible Resistor	No
Anti-Surge	No
Anti-Sulfurated	No
Case Style	Epoxy
Terminal Form	Gull Wing
Number of Terminals	2
Terminal Pitch (mm)	5.08
Packing Method	Tube
Package Type	TO-263
Package Shape	Rectangular
Case Code - in	TO-263
Length (mm)	10.1
Depth (mm)	15.39
Height (mm)	4.5
Length Tolerance (mm)	±0.38
Depth Tolerance (mm)	±0.38
Height Tolerance (mm)	±0.38
