PDB241-E420P-103B0

SKU: 141281

Manufacturer: Bourns

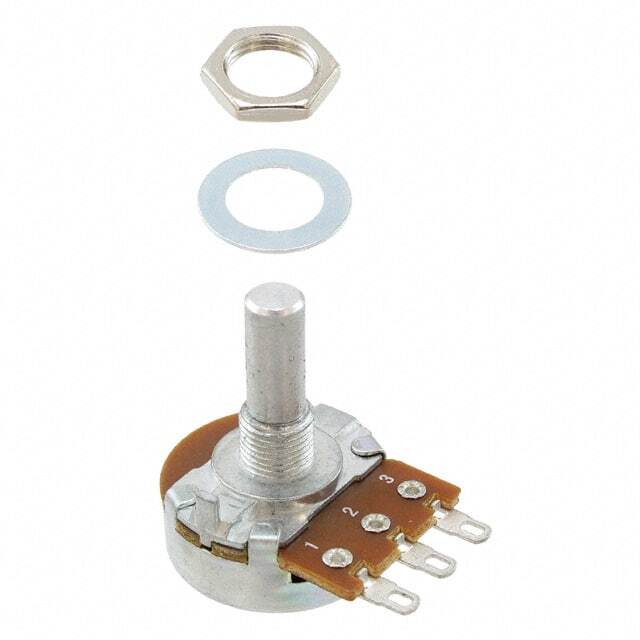

Res Carbon Film POT 10K Ohm 20% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 6mm (31.8 X 24 X 28mm) Solder Lug Panel Mount

3840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Type	Potentiometer
Resistance Value (Ohm)	10K
Tolerance	20%
Voltage Rating-Max (V)	500
Power Rating (W)	0.5 (1/2)
Technology	Carbon Film
Operating Temperature-Min	-10
Operating Temperature-Max	70
Linear or Logarithmic	Lin
Terminal Form	Solder Lug
Positions of Adjustment	Side
Shaft Diameter (mm)	6
Number of Turns (Turns)	1(Elec)
Number of Elements	1
Number of Electrical Turns (Turns)	1
Mechanical Rotation (°)	300
Mechanical Rotational Life (Cycles)	15000
Number of Mechanical Turns (Turns)	1
Length (mm)	31.8
Depth (mm)	24
Height (mm)	28
