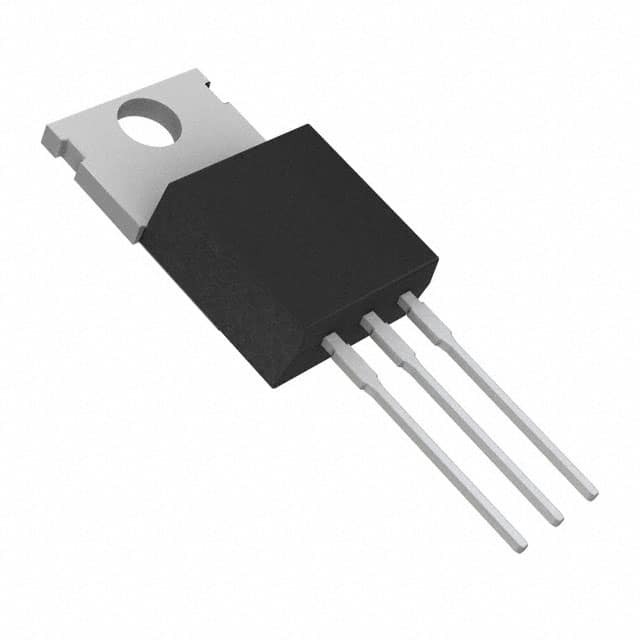

BD646-S

SKU: 72559

Manufacturer: Bourns

Trans Darlington PNP 60V 8A 62500mW 3-Pin(3+Tab) TO-220

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	PNP
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	60
Collector Base Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	3@50mA@5A
Maximum Continuous DC Collector Current (A)	8
Maximum Collector Cut-Off Current (uA)	200
Maximum Collector-Emitter Saturation Voltage (V)	2@12mA@3A
Minimum DC Current Gain	750@3A@3V
Maximum Power Dissipation (mW)	62500
Operating Temperature-Min	-65
Operating Temperature-Max	150
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	8.72(Max)
Package Length	10.4(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
