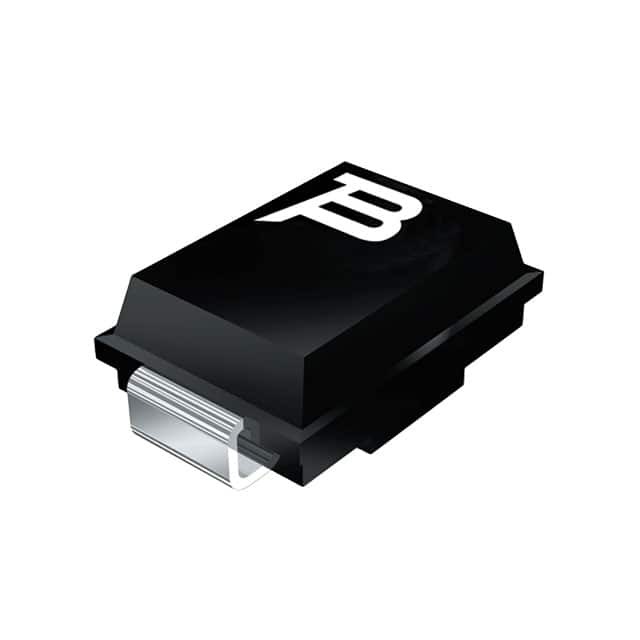

ACTP250J1BJR-S

SKU: 81030

Manufacturer: Bourns

Thyristor Surge Protection Devices 190V 2-Pin SMB T/R

2170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.30.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Direction Type	Bi-Directional
Repetitive Peak Reverse Voltage (V)	190
Repetitive Peak Forward Blocking Voltage (V)	190
Maximum Breakover Voltage (V)	263
Maximum Peak Pulse Current (A)	1000
Maximum Holding Current (mA)	20(Min)
Repetitive Peak Off-State Current (mA)	0.01@Ta=85C
Maximum Breakover Current (mA)	800
Maximum Rate of Rise of On-State Current (A/us)	800
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Original Package	SMB
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Height	2.2(Max)
Package Length	4.57(Max)
Package Width	3.94(Max)
PCB changed	2
