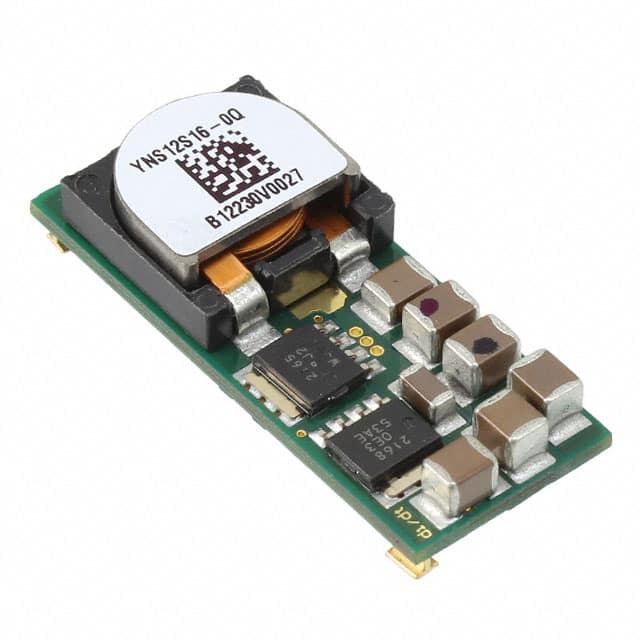

YNS12S16-0 Bel Power Solutions

YNS12S16-0

SKU: 93230

Manufacturer: Bel Power Solutions

Module DC-DC 12VIN 1-OUT 0.7525V to 5.5V 16A 88W 5-Pin SMD Module T/R

Download sample

Request Free Samples

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
HTS	8504.40.85.00
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Non-Isolated
Minimum Input Voltage (V)	9.6
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	14
Output Voltage (V)	0.7525 to 5.5
Output Current (A)	16
Output Power (W)	88
Input/Output Type	DC/DC
Typical Standby Current (mA)	5
Switching Frequency (kHz)	300(Typ)
Switching Regulator	Yes
Load Regulation	5mV(Typ)
Line Regulation	0.5mV(Typ)
Efficiency (%)	94.8(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Weight (g)	6.12
Output Type	Adjustable
Original Package	SMD Module
Pin Count	5
Standard Package Method	SMD Module
Terminal Form	Surface Mount
Package Height	7.98
Package Length	33.02
Package Width	13.46
