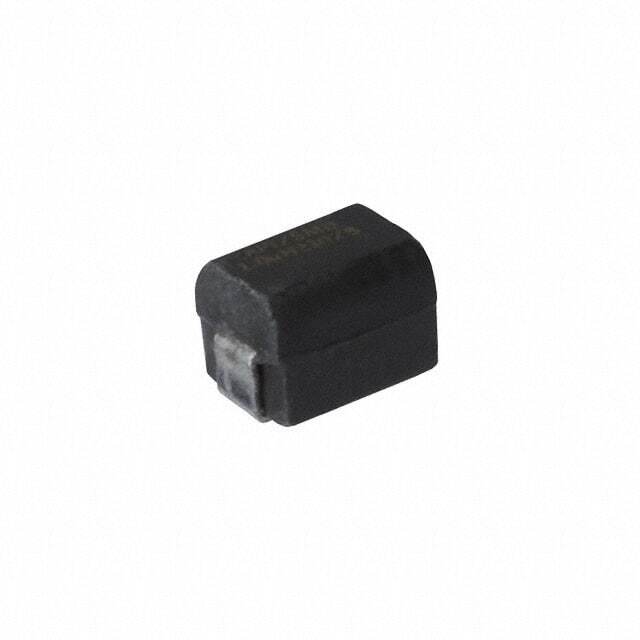

P1812R-104K

SKU: 27976

Manufacturer: API Delevan

Inductor Power Unshielded Wirewound 100uH 10% 1KHz Ferrite 0.18A 4.32Ohm DCR 1812 T/R

3190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	100u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.18
Maximum DC Resistance (Ohm)	4.32
Number of Terminals	2
Case Size	1812
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.83
Terminal Form	Surface Mount
Depth (mm)	3.4
