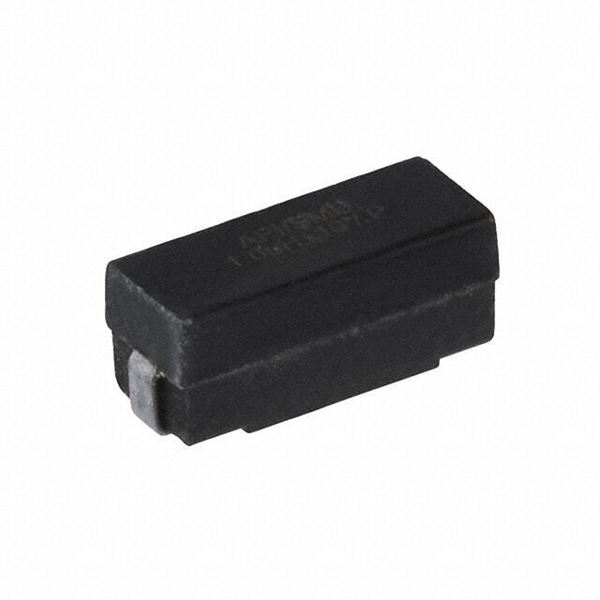

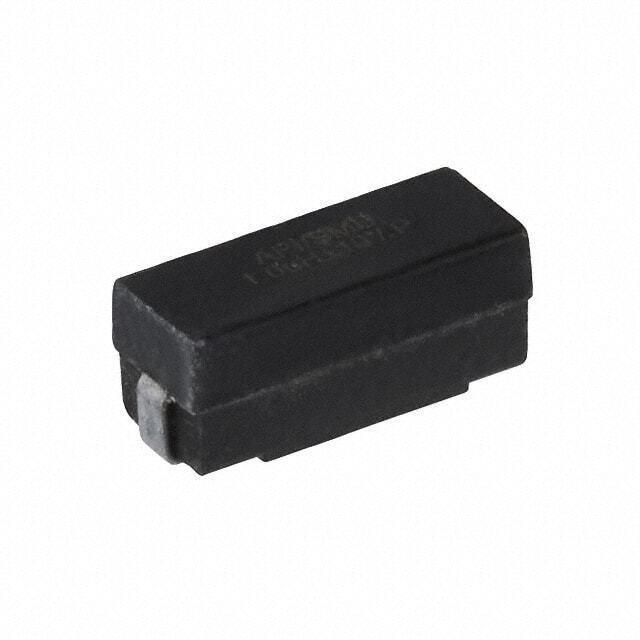

P1330R-102K

SKU: 20829

Manufacturer: API Delevan

Inductor Power Unshielded Wirewound 1uH 10% 1KHz Ferrite 2.78A 0.045Ohm DCR 3013 T/R

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	1u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	2.78
Maximum DC Resistance (Ohm)	0.045
Number of Terminals	2
Case Size	3013
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	8.26
Terminal Form	Surface Mount
Depth (mm)	3.18
