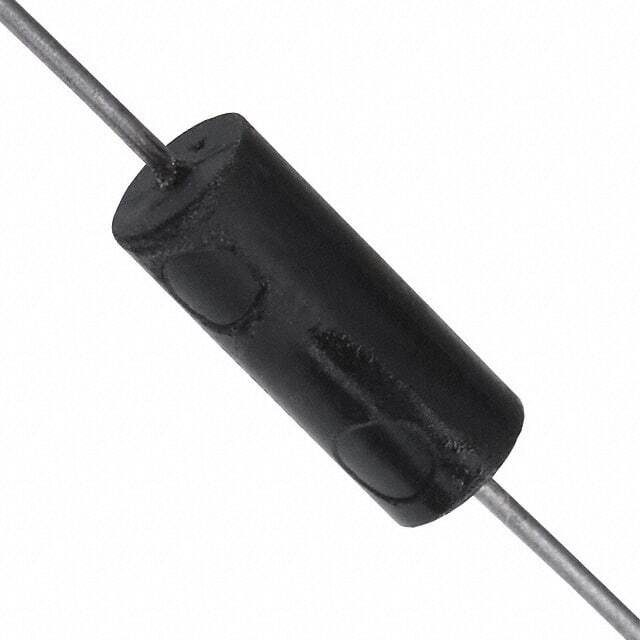

1641R-105K

SKU: 128757

Manufacturer: API Delevan

Inductor RF Shielded/Molded Wirewound 1000uH 10% 790KHz 60Q-Factor Ferrite 0.07A 17.5Ohm DCR AXL T/R

2500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Protection Style	Shielded/Molded
Core Body Material	Ferrite
Inductance (H)	1000u
Tolerance	10%
Inductance Test Frequency (Hz)	790K
Maximum DC Current (A)	0.07
Maximum DC Resistance (Ohm)	17.5
Minimum Quality Factor	60
Quality Test Frequency (Hz)	790K
Minimum Self Resonant Frequency (Hz)	3.8M
Terminal Form	Through Hole
Lead Style	Axial
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Product Diameter (mm)	4.36
