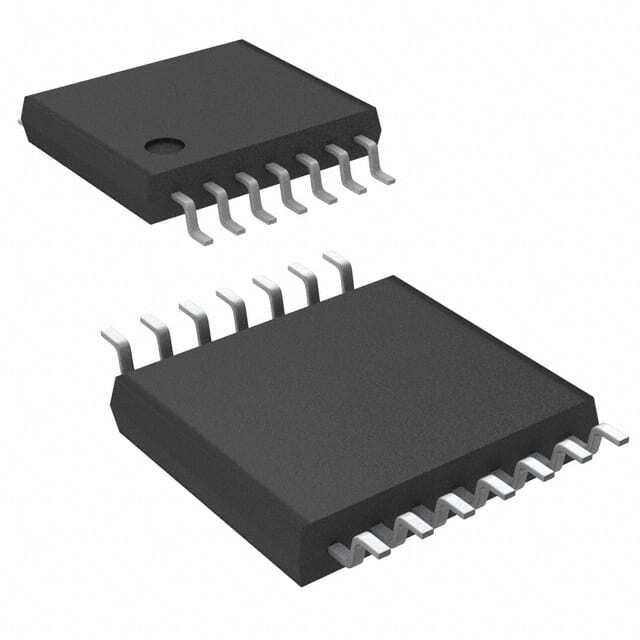

OP462HRUZ-REEL

SKU: 105667

Manufacturer: Analog Devices

Op Amp Quad Low Power Amplifier R-R O/P ±6V/12V 14-Pin TSSOP T/R

2350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Output
Process Technology	BiCOM
Maximum Input Offset Voltage (mV)	1@5V@-40C to 125C
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Typical Low Level Output Voltage (V)	0.065
Typical High Level Output Voltage (V)	4.94
Maximum Input Offset Current (uA)	0.025@5V
Typical Input Bias Current (uA)	0.36@5V
Maximum Input Bias Current (uA)	0.6@5V
Maximum Supply Current (mA)	2.8@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	10@5V
Typical Input Noise Voltage Density (nV/rtHz)	9.5@5V
Input Offset Voltage Drift (uV/°C)	1(Typ)
Typical Voltage Gain (dB)	98.89
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.4@5V
Minimum PSRR (dB)	120(Typ)
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	15
Typical Settling Time (ns)	540
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
PCB changed	14
