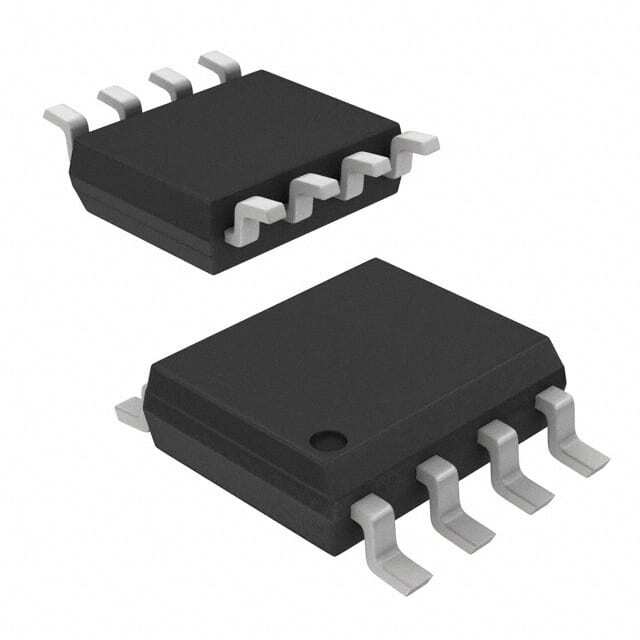

OP291GSZ-REEL7

SKU: 63337

Manufacturer: Analog Devices

Op Amp Dual Micropower Amplifier R-R I/O ±6V/12V 8-Pin SOIC N T/R

720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Process Technology	CBCMOS
Maximum Input Offset Voltage (mV)	0.7@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Typical Low Level Output Voltage (V)	0.04
Typical High Level Output Voltage (V)	4.99
Maximum Input Offset Current (uA)	0.011@5V
Typical Input Bias Current (uA)	0.03@5V
Maximum Input Bias Current (uA)	0.065@5V
Maximum Supply Current (mA)	0.8@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.4@5V
Typical Input Noise Voltage Density (nV/rtHz)	42@5V
Input Offset Voltage Drift (uV/°C)	1.1
Typical Voltage Gain (dB)	96.9
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.8@5V
Minimum PSRR (dB)	80
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	3
Typical Settling Time (ns)	22000
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
