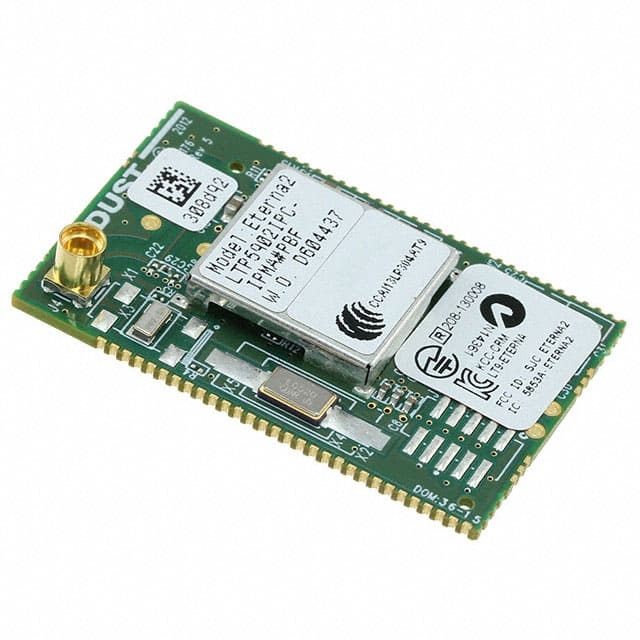

LTP5902IPC-IPMA#PBF

SKU: 140476

Manufacturer: Analog Devices

802.15.4e SOC 2483.5MHz 250Kbps 66-Pin Tray

2630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	5A002a.1.
Part Status	Active
HTS	8517.62.0090
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Module/IC Classification	Module
Modulation Technique	DSSS
Solutions	ISM
RAM Size (KB)	72
Flash Size (KB)	512
Number of Channels	15
External Antenna Connector Type	MMCX
Maximum Data Rate (Kbps)	250(Typ)
Minimum Operating Frequency (MHz)	2400
Maximum Operating Frequency (MHz)	2483.5
ISM Band	2.4GHz
Typical Sensitivity	-95dBm
Protocol Stack	802.15.4e
Interface	SPI/UART
Maximum Output Power	8dBm(Typ)
Operating Supply Voltage-Min (V)	2.1
Operating Supply Voltage-Max (V)	3.76
Indoor Range	100m
Outdoor Range	300m
Processing Unit Type	Microprocessor
Antenna Terminal Form	External
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	66
Terminal Form	Surface Mount
Package Height	6.23
Package Length	37.5
Package Width	24
