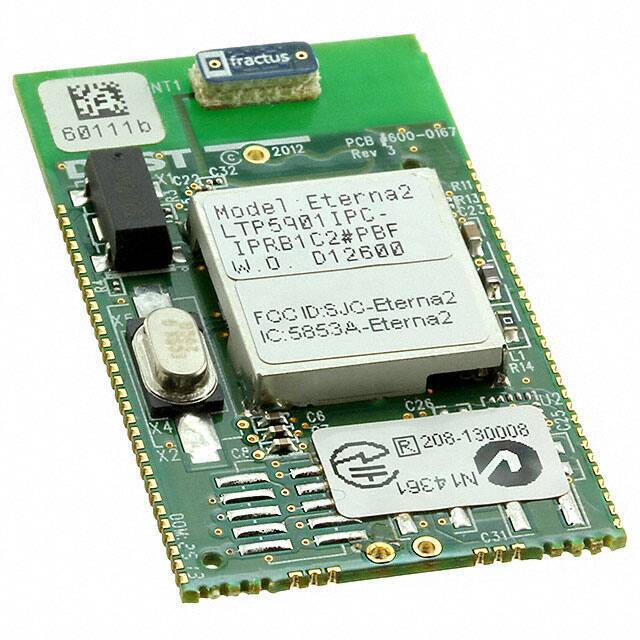

LTP5901IPC-IPRB1C2#PBF

SKU: 13060

Manufacturer: Analog Devices

6LoWPAN/802.15.4e SOC 2483.5MHz 250Kbps 66-Pin

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	5A992.c
Part Status	Unconfirmed
HTS	8517.62.00.20
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Module/IC Classification	Module
Solutions	ISM
Number of Channels	15
Internal Antenna Type	Chip
Maximum Data Rate (Kbps)	250(Typ)
Minimum Operating Frequency (MHz)	2400
Maximum Operating Frequency (MHz)	2483.5
ISM Band	2.4GHz
Typical Sensitivity	-65dBm
Protocol Stack	6LoWPAN/802.15.4e
Interface	UART
Maximum Output Power	8dBm(Typ)
Operating Supply Voltage-Min (V)	2.1
Typical Operating Supply Voltage (V)	3.6
Operating Supply Voltage-Max (V)	3.76
Indoor Range	100m
Outdoor Range	300m
Processing Unit Type	Microprocessor
Antenna Terminal Form	On Board
Operating Temperature-Min	-40
Operating Temperature-Max	85
Pin Count	66
Terminal Form	Surface Mount
Package Height	3.54
Package Length	42
Package Width	24
