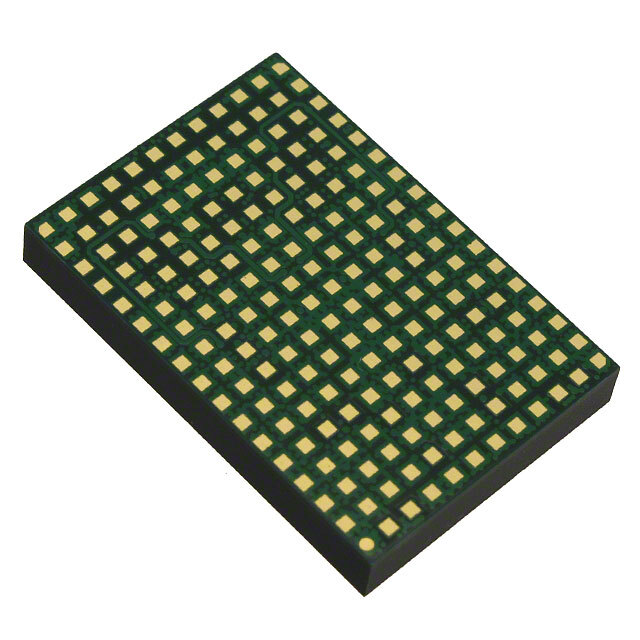

LTM9004IV-AA#PBF

SKU: 158098

Manufacturer: Analog Devices

2-Channel Dual ADC Pipelined 125Msps 14-bit Parallel 204-Pin LGA Tray

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	5A991.b
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	125Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Voltage Supply Source	Single
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Typical Power Dissipation (mW)	1830
Integral Nonlinearity Error	±1.5LSB(Typ)
Signal to Noise Ratio	76.1dB(Typ)
No Missing Codes (bit)	14
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	LGA
Pin Count	204
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	2.91
Package Length	22
Package Width	15
PCB changed	204
