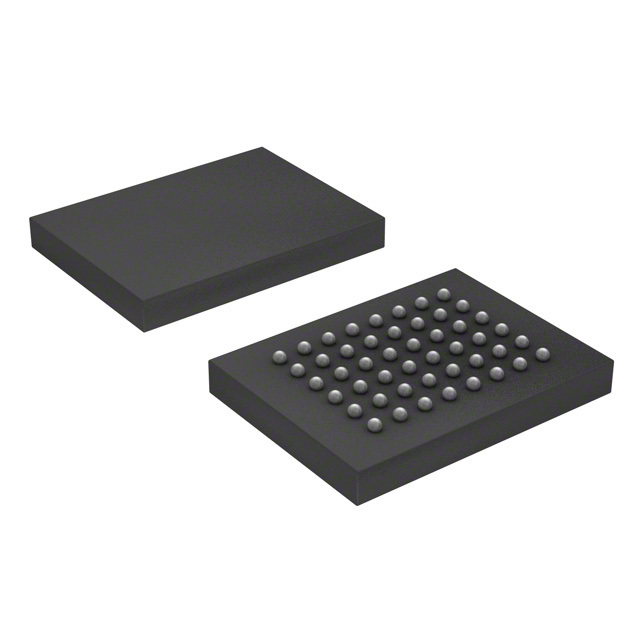

LTM8053EY#PBF Analog Devices

LTM8053EY#PBF

SKU: 80086

Manufacturer: Analog Devices

40VIN, 3.5A/6A Step-Down Silent Switcher μModule Regulator

Download sample

Request Free Samples

710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Non-Isolated
Minimum Input Voltage (V)	3.4
Maximum Input Voltage (V)	40
Output Voltage (V)	0.97 to 15
Output Current (A)	6(Min)
Input/Output Type	DC/DC
Typical Standby Current (mA)	0.001
Switching Frequency (kHz)	3000(Typ)
Switching Regulator	Yes
Load Regulation	0.5%(Typ)
Line Regulation	0.5%(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tray
Product Weight (g)	0.5
Output Type	Adjustable
Original Package	BGA
Pin Count	48
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.82
Package Length	9
Package Width	6.25
PCB changed	48
