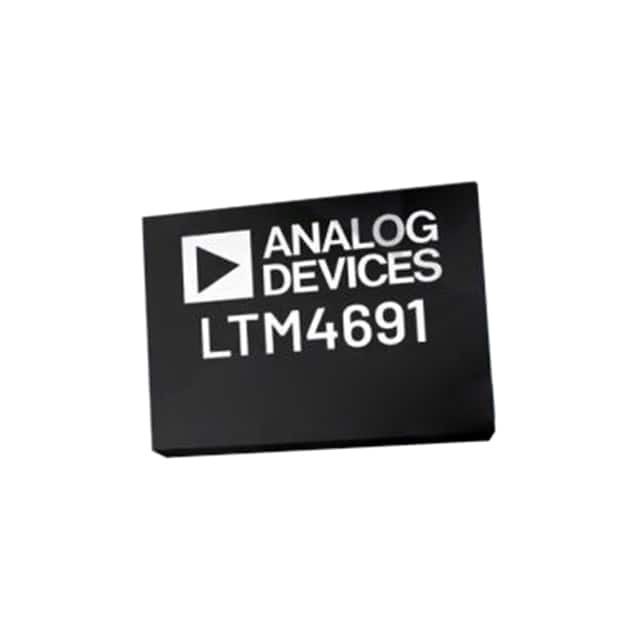

LTM4691EV#PBF Analog Devices

LTM4691EV#PBF

SKU: 30686

Manufacturer: Analog Devices

Module DC-DC 2-OUT 0.5V to 2.5V 2A/2A 24-Pin LGA Tray

Download sample

Request Free Samples

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	2
Isolation	Non-Isolated
Minimum Input Voltage (V)	2.25
Maximum Input Voltage (V)	3.6
Output Voltage (V)	0.5 to 2.5
Output Current (A)	2
Input/Output Type	DC/DC
Typical Standby Current (mA)	0.0015
Switching Frequency (kHz)	2000(Typ)
Switching Regulator	Yes
Load Regulation	1.5%
Line Regulation	0.5%/V
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Product Weight (g)	0.042
Output Type	Adjustable
Original Package	LGA
Pin Count	24
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	1.25(Max)
Package Length	4
Package Width	3
PCB changed	24
