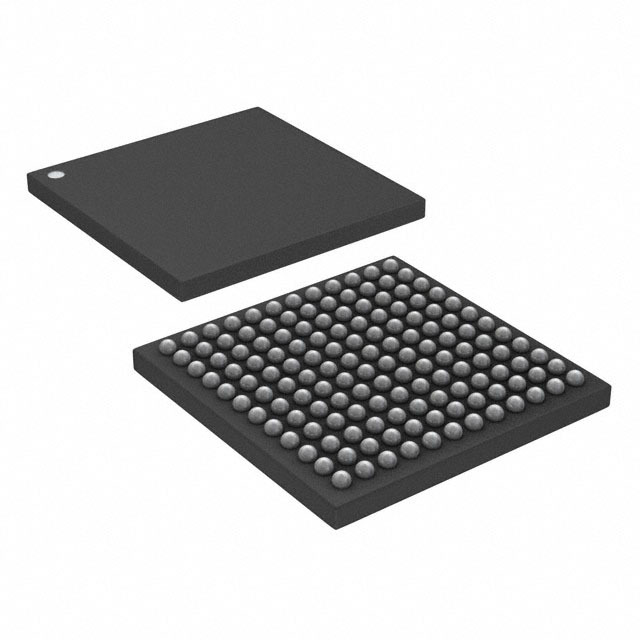

LTM4650IY-1A Analog Devices

LTM4650IY-1A

SKU: 41377

Manufacturer: Analog Devices

Dual 25A or Single 50A µModule Regulator with 0.8% DC and 3% Transient Accuracy

Download sample

Request Free Samples

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	2
Isolation	Non-Isolated
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	15
Output Voltage (V)	0.6 to 1.8
Output Current (A)	25
Input/Output Type	DC/DC
Typical Standby Current (mA)	0.035
Switching Frequency (kHz)	780(Typ)
Switching Regulator	Yes
Load Regulation	0.4%
Line Regulation	0.1%/V
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tray
Product Weight (g)	3.5
Output Type	Adjustable
Original Package	BGA
Pin Count	144
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	4.41
Package Length	16
Package Width	16
PCB changed	144
