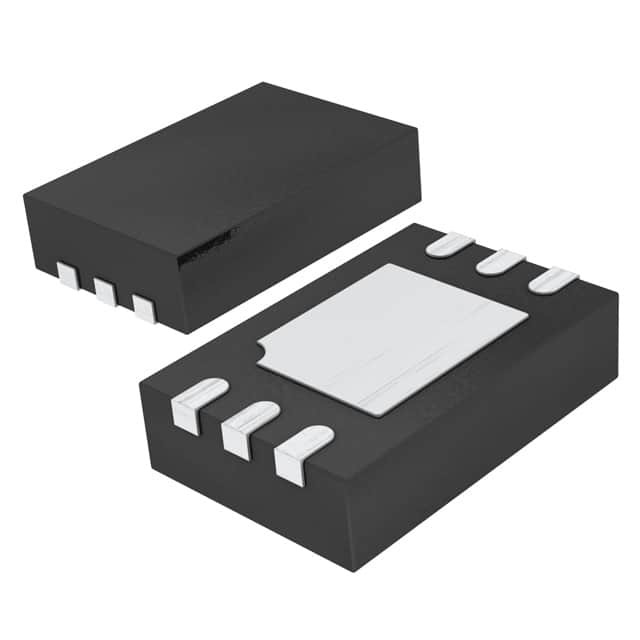

LTC6992CDCB-3#TRPBF

SKU: 41371

Manufacturer: Analog Devices

Silicon Oscillator - 0.00000381MHz to 1MHz CMOS Automotive 6-Pin DFN EP T/R

2980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Silicon Oscillator
Number of Outputs	1
Manual Reset	No
User Programming Method	Resistor
Standard Frequency Range (MHz)	0.00000381 to 1
Maximum Frequency Accuracy	±2.4%
Typical Frequency Temperature Coefficient	±0.005%/°C
Typical Frequency Line Regulation	0.25%/V
Maximum Symmetry (%)	99
Output Level	CMOS
Output Signal Type	Single-Ended
Operating Supply Voltage-Min (V)	2.25
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	3.3
Maximum Supply Current (mA)	0.45
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Standard Package Method	DFN
Pin Count	6
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	2
Package Width	3
PCB changed	6
