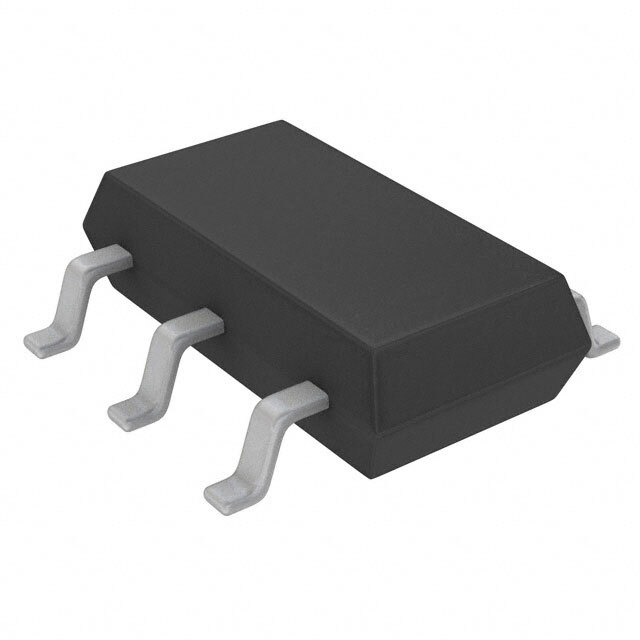

LTC6991IS6#TRPBF

SKU: 48517

Manufacturer: Analog Devices

Silicon Oscillator - 0.0000000000291MHz to 0.000977MHz CMOS Automotive 6-Pin TSOT-23 T/R

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Silicon Oscillator
Number of Outputs	1
Manual Reset	Yes
User Programming Method	Resistor
Standard Frequency Range (MHz)	0.0000000000291 to 0.000977
Maximum Frequency Accuracy	±2.2%
Typical Frequency Temperature Coefficient	±0.005%/°C
Typical Frequency Line Regulation	0.23%/V
Maximum Symmetry (%)	50(Typ)
Output Level	CMOS
Output Signal Type	Single-Ended
Operating Supply Voltage-Min (V)	2.25
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	2.5
Maximum Supply Current (mA)	0.17
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Standard Package Method	SOT
Pin Count	6
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	6
