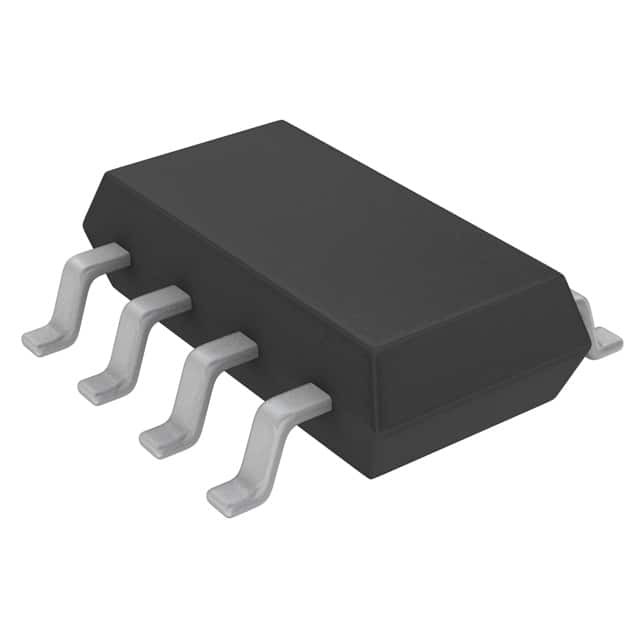

LTC6910-2HTS8#TRPBF

SKU: 119154

Manufacturer: Analog Devices

SP Amp Variable Gain Amp Single R-R I/O ±5.25V/10.5V Automotive 8-Pin TSOT-23 T/R

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Programmable Gain Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Typical Gain Bandwidth Product (MHz)	13
Maximum Voltage Gain Range (dB)	35 to 50
Maximum Voltage Gain (dB)	36
Minimum CMRR Range (dB)	<60
Minimum CMRR (dB)	50
Minimum PSRR (dB)	60
Typical Output Current (mA)	35
Maximum Input Offset Voltage (mV)	17@5V@-40C to 125C
Operating Supply Voltage-Max (V)	10.5
Maximum Supply Voltage Range (V)	10 to 15
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	10.5
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Maximum Supply Current (mA)	3.5@5V@-40C to 125C
Maximum Input Resistance (MOhm)	100(Typ)@5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Power Supply Type	Dual
Pin Count	8
Standard Package Method	SOT-23
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	8
