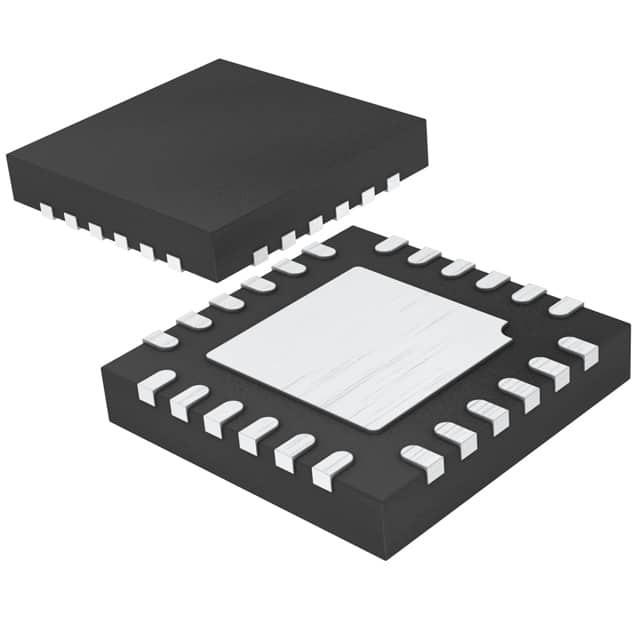

LTC5598IUF

SKU: 140436

Manufacturer: Analog Devices

Quadrature Mod 24-Pin QFN EP Tube

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Device Type	Modulator
Modulation Type	Quadrature
Programmability	No
Maximum Conversion Gain (dB)	-2(Typ)
Typical Output Power (dBm)	2
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Current (A)	0.2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	24
Original Package	QFN EP
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	4
PCB changed	24
