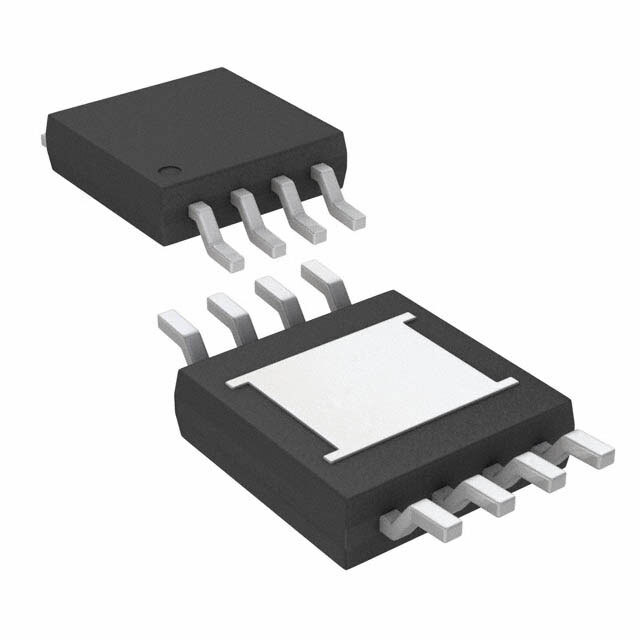

LTC4440IMS8E#TRPBF

SKU: 55657

Manufacturer: Analog Devices

Driver 2.4A 1-OUT High Side Full Brdg 8-Pin MSOP EP T/R

2980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High Side
Bridge Type	Full Bridge
Number of Drivers	1
Type	MOSFET
Number of Outputs	1
Maximum Rise Time (ns)	100(Typ)
Maximum Fall Time (ns)	70(Typ)
Maximum Propagation Delay Time (ns)	75
Input Logic Compatibility	CMOS
Operating Supply Voltage-Max (V)	80
Maximum Supply Current (mA)	0.4
Typical Input Low Threshold Voltage (V)	1.25
Typical Input High Threshold Voltage (V)	1.6
Peak Output Current (A)	2.4(Typ)
Output Resistance (Ohm)	1.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	MSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
