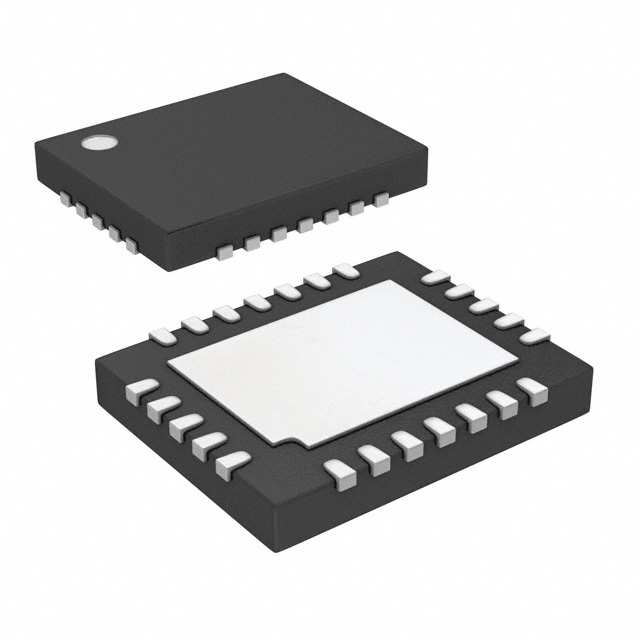

LTC2873CUFD#TRPBF

SKU: 115492

Manufacturer: Analog Devices

Dual Transmitter/Receiver RS-232/RS-485 24-Pin QFN EP T/R

3200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Function	Line Transceiver
Data Rate	250Kbps
Transmitter Communication Type	RS-232
Receiver Communication Type	RS-232
Interface Standards	EIA/TIA-232-F
Data Transmission Topology	Point-to-Point
Number of Transceivers	2
Number of Transmitters	2
Number of Receivers	2
Transmitter Signal Type	Differential
Receiver Signal Type	Differential
Number of Drivers per Line	1
Number of Receivers per Line	1
Driving Mode	3-State
Number of Transmitter Enables	1
Number of Receiver Enables	1
Operating Temperature-Min	0
Operating Temperature-Max	70
Power Supply Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	9
Isolation	Yes
Packing Method	Tape and Reel
Pin Count	24
Original Package	QFN EP
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	4
PCB changed	24
