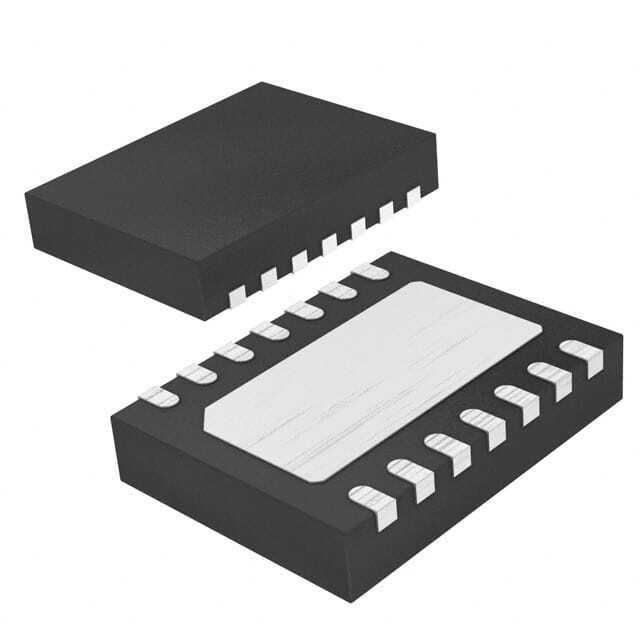

LTC2637IDE-HZ12#TRPBF

SKU: 140318

Manufacturer: Analog Devices

DAC 8-CH 12-bit Automotive 14-Pin DFN EP T/R

660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Converter Type	General Purpose
Resolution	12bit
Number of DAC Channels	8
Number of Outputs per Chip	8
Maximum Settling Time (us)	5(Typ)
Digital Interface Type	Serial (2-Wire, I2C)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	0.3(Typ)
Integral Nonlinearity Error	±2.5LSB
Full Scale Error	±0.8%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	14
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	3
PCB changed	14
