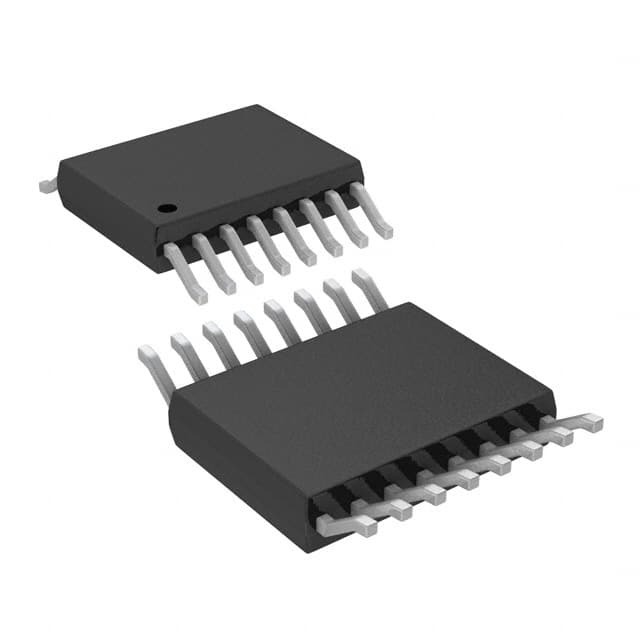

LTC2637CMS-LMI8#TRPBF

SKU: 111908

Manufacturer: Analog Devices

DAC 8-CH 8-bit 16-Pin MSOP T/R

2500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Resolution	8bit
Number of DAC Channels	8
Number of Outputs per Chip	8
Maximum Settling Time (us)	3.5(Typ)
Digital Interface Type	Serial (2-Wire, I2C)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	0.3(Typ)
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±0.8%FSR
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	16
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	16
