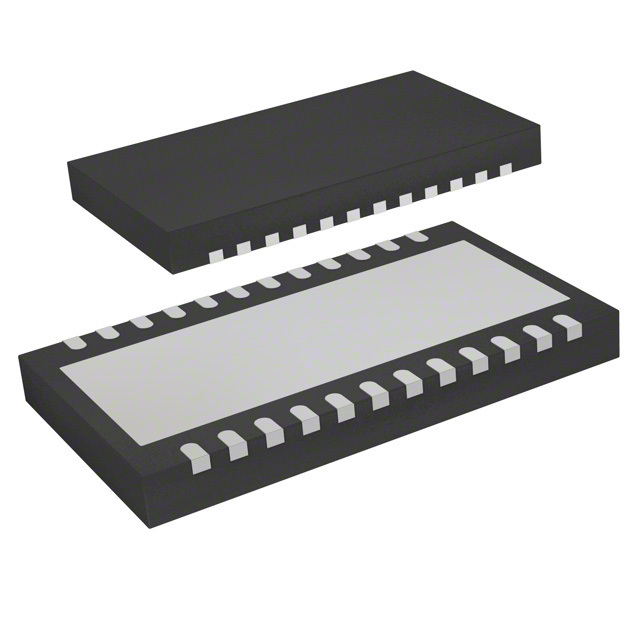

    LTC2500CDKD-32#PBF

    SKU: 16520
    Manufacturer: Analog Devices
    1-Channel Single ADC SAR 1Msps 32-bit Serial 24-Pin DFN EP Tube
    3050 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Converter Type General Purpose
    Architecture SAR
    Resolution 32bit
    Number of ADCs 1
    Number of Input Channels 1
    Sampling Rate 1Msps
    Digital Interface Type Serial (SPI)
    Input Type Voltage
    Input Signal Type Differential
    Voltage Reference External
    Polarity of Input Voltage Bipolar
    Voltage Supply Source Single
    Input Voltage ±5.1V
    Minimum Single Supply Voltage (V) 2.375
    Typical Single Supply Voltage (V) 2.5
    Maximum Single Supply Voltage (V) 2.625
    Typical Power Dissipation (mW) 24
    Maximum Power Dissipation (mW) 35
    Integral Nonlinearity Error ±2ppm
    Full Scale Error ±100ppm
    Signal to Noise Ratio 104dB(Typ)
    No Missing Codes (bit) 32
    Sample and Hold Yes
    Single-Ended Input No
    Digital Supply Support No
    Operating Temperature-Min 0
    Operating Temperature-Max 70
    Packing Method Tube
    Supplier Temperature Grade Commercial
    Original Package DFN EP
    Pin Count 24
    Standard Package Method DFN
    Terminal Form Surface Mount
    Package Height 0.75(Max)
    Package Length 7
    Package Width 4
    PCB changed 24
