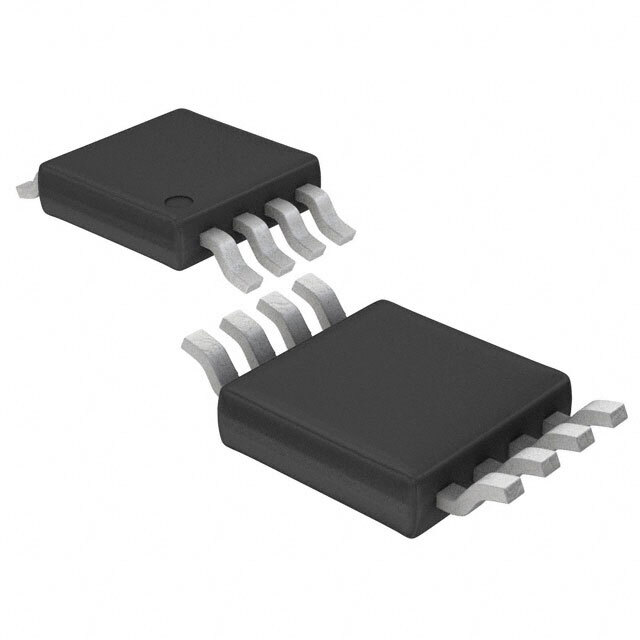

LTC1966CMS8#TRPBF

SKU: 12840

Manufacturer: Analog Devices

RMS to DC Converter 1.05V 158uA 800kHz 8-Pin MSOP T/R

10830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
3dB Bandwidth (kHz)	800
Typical Output Voltage Swing (V)	1.05(Max)
Maximum Output Resistance (kOhm)	95
Minimum Single Supply Voltage (V)	2.7
Maximum Single Supply Voltage (V)	5.5
Maximum Dual Supply Voltage (V)	±5.5
Minimum RMS Input Voltage (Vrms)	0.005
Maximum Supply Current (uA)	158(Typ)
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
