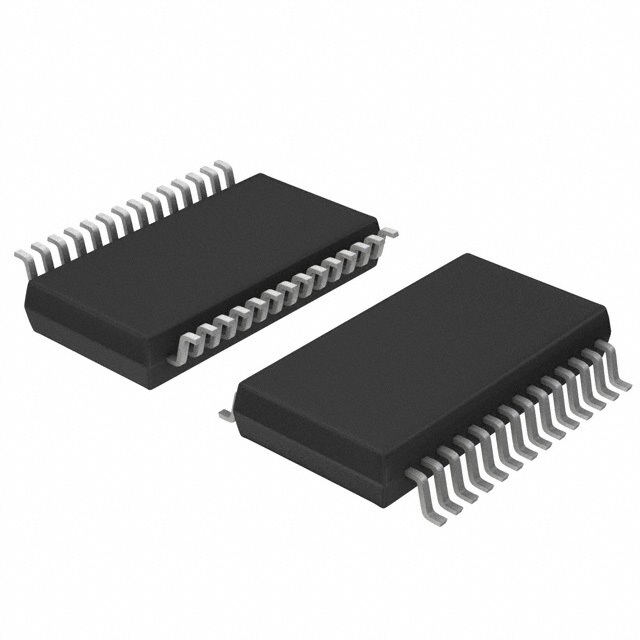

LTC1929IG-PG#TRPBF

SKU: 154487

Manufacturer: Analog Devices

Current Mode PWM Controller 3A 300kHz Automotive 28-Pin SSOP T/R

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Current Mode PWM Controller
Control Method	Current
Topology	Buck
Number of PWM Outputs	1
Switching Frequency (kHz)	300
Maximum Duty Cycle (%)	99
Output Current (mA)	3000(Max)
Rise Time (ns)	30
Fall Time (ns)	40
Operating Supply Voltage (V)	4 to 36
Operating Supply Voltage-Min (V)	4
Operating Supply Voltage-Max (V)	36
Maximum Supply Current (mA)	0.47(Typ)
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
UVLO Turn-On Threshold (V)	3.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	28
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	28
