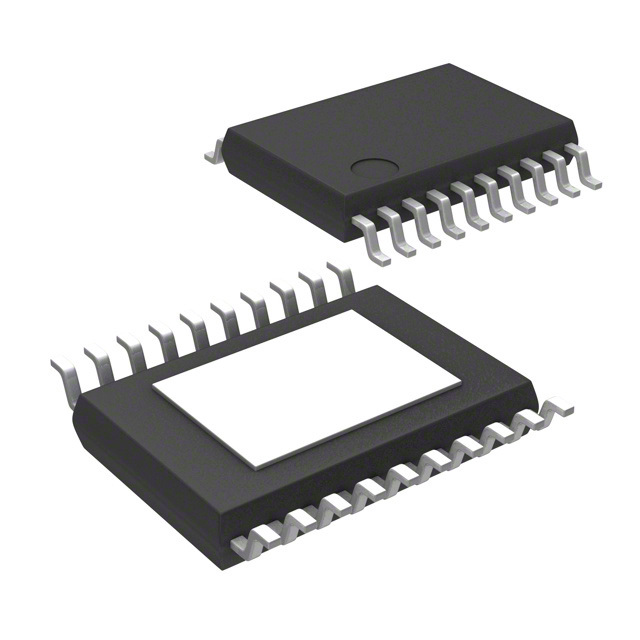

LT8710IFE#PBF

SKU: 118919

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Inverting/Step Up 750kHz Automotive 20-Pin TSSOP EP Tube

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Inverting
Output Voltage (V)	80(Max)
Maximum Switching Frequency (kHz)	750
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	80
Operating Supply Voltage (V)	4.5 to 80
Maximum Supply Current (mA)	4(Typ)
Typical Quiescent Current (mA)	5.5
Minimum Switching Frequency (kHz)	100
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	TSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
